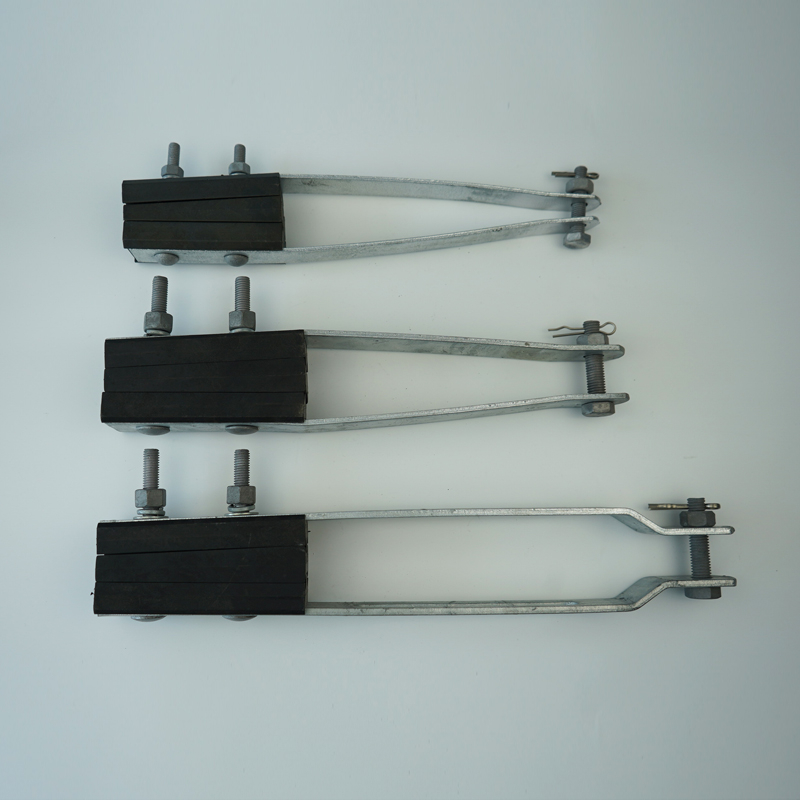

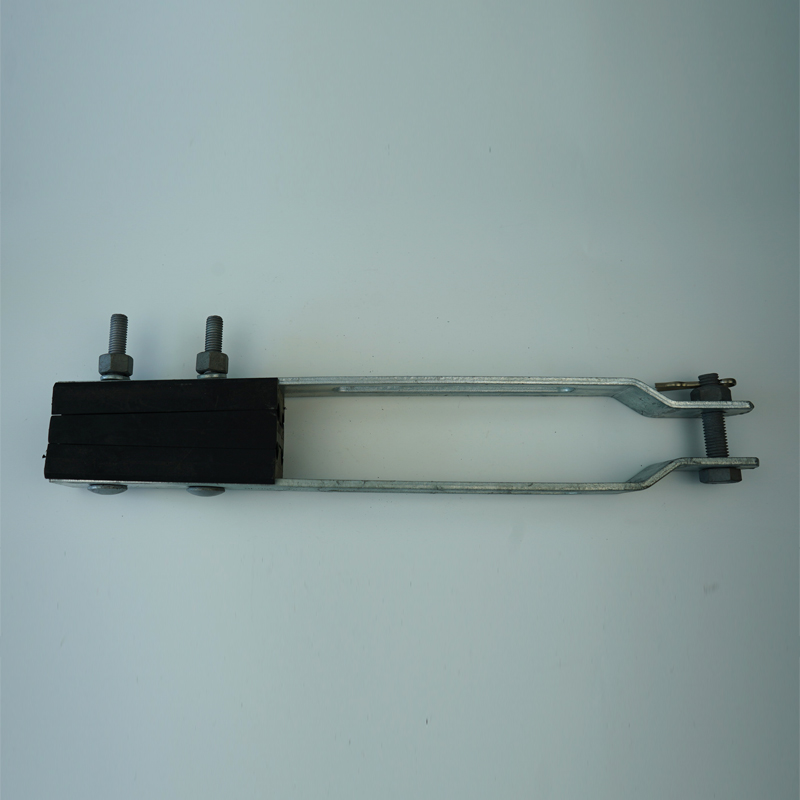

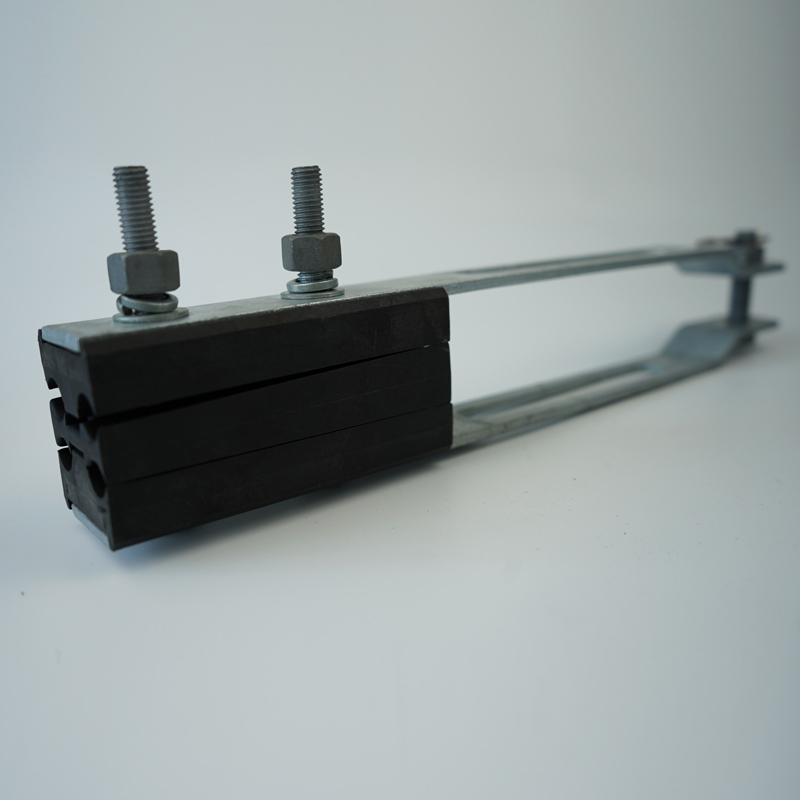

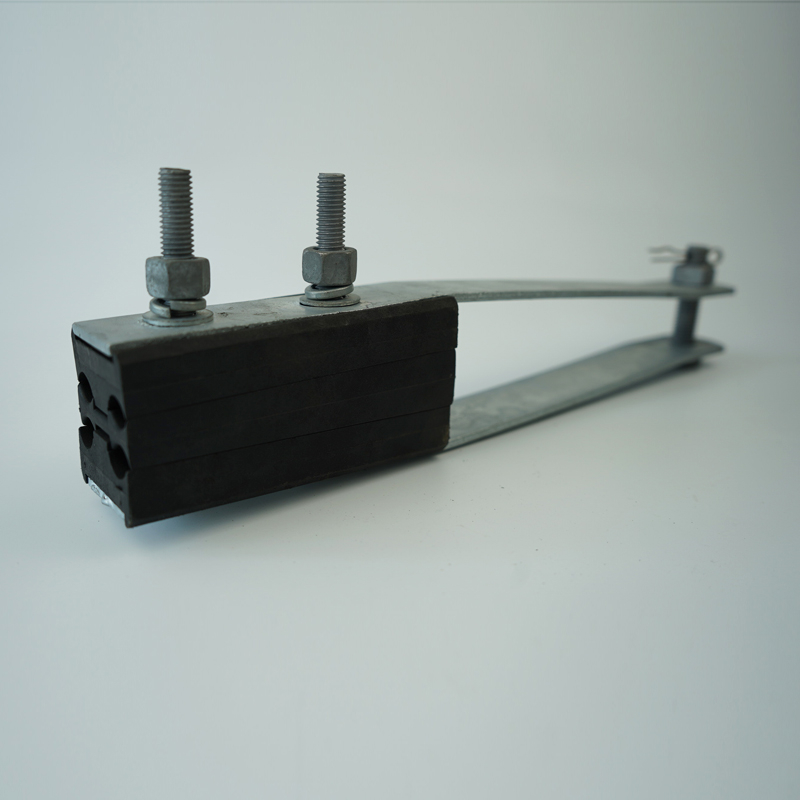

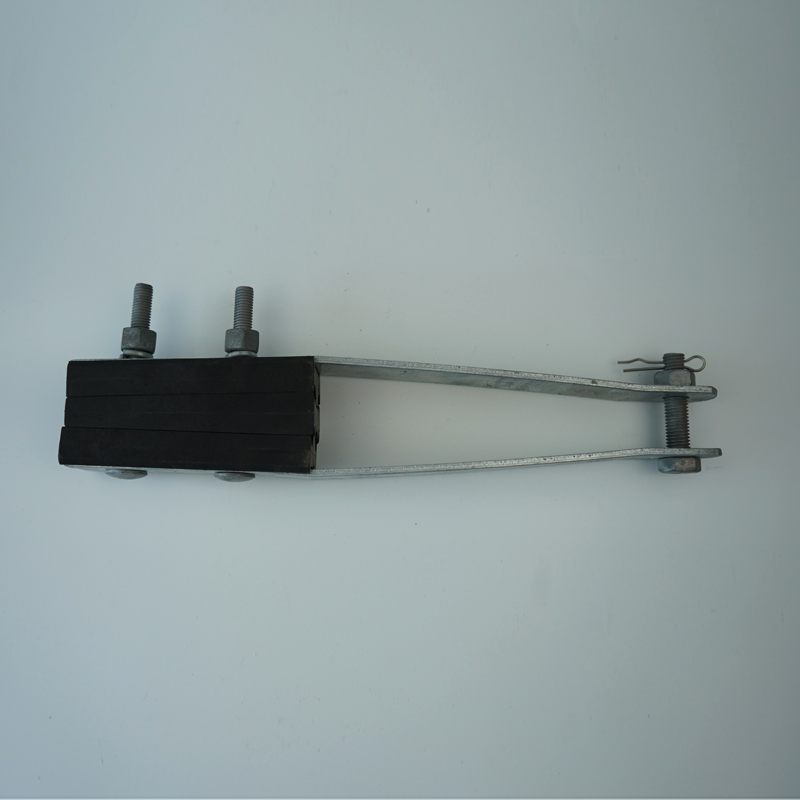

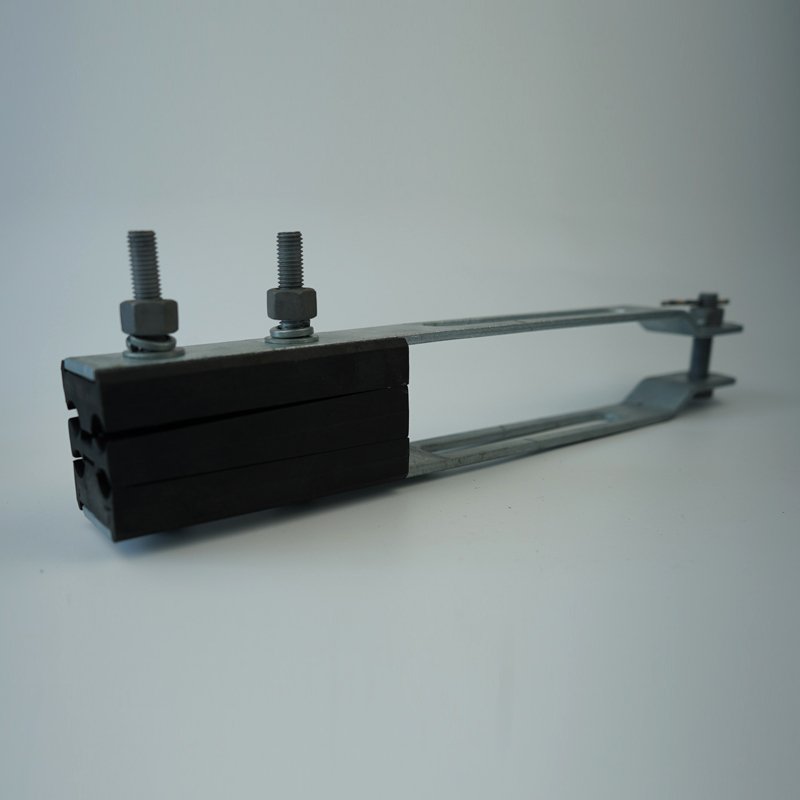

4-Core Tension Clamp

Application:
Suitable for fixing or tightening insulated conductors at both ends of overhead four core bundled cable line terminals or tension sections of 1kV and below.
Availability:
4-Core Tension Clamp
4-Core Tension Clamp
4-Core Tension Clamp
4-Core Tension Clamp
4-Core Tension Clamp
4-Core Tension Clamp

Product Description

Feature:

The four core parallel groove wedge structure is equipped with springs between the upper and lower parallel grooves, which can easily open after loosening the bolts. The four wires are clamped into the sandwich according to the direction of the line installation, and the bolts are tightened. The clamped four wires can automatically form a bundle.


The sandwich is made of insulation material that is resistant to high mechanical strength and climate change, ensuring good stress distribution on the wiring harness. The tightening of bolts can also be controlled by a torque cap with appropriate torque. Tightening the cable can achieve the best grip without damaging the cable insulation layer.


Type

Suitable for Cable Size

Failure Load(KN)

NXJ4-16-50

4x16-50mm2

≥12

NXJ4-16-50

4x16-50mm2

≥22
