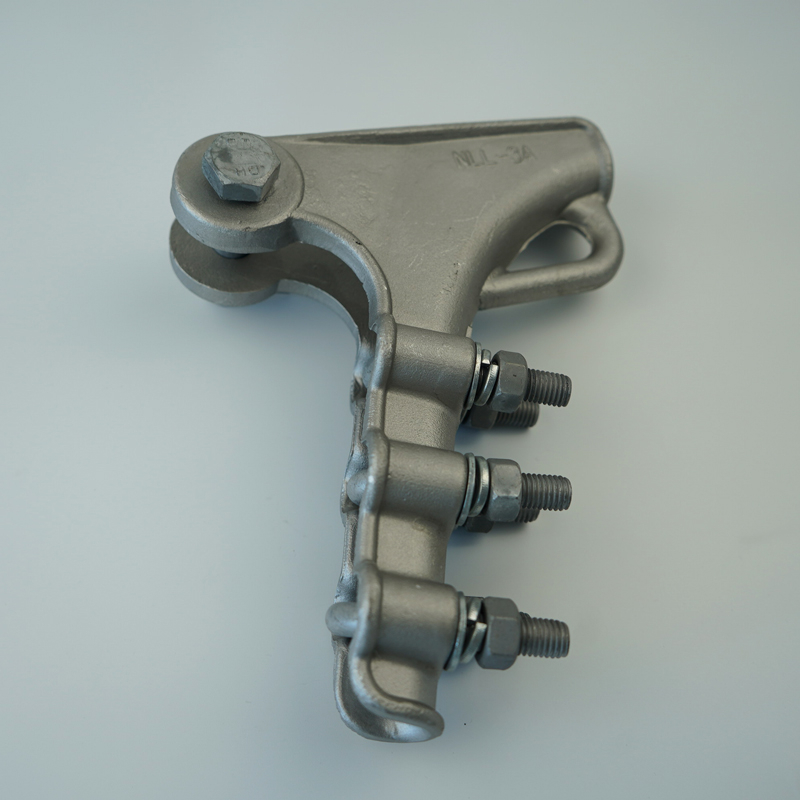

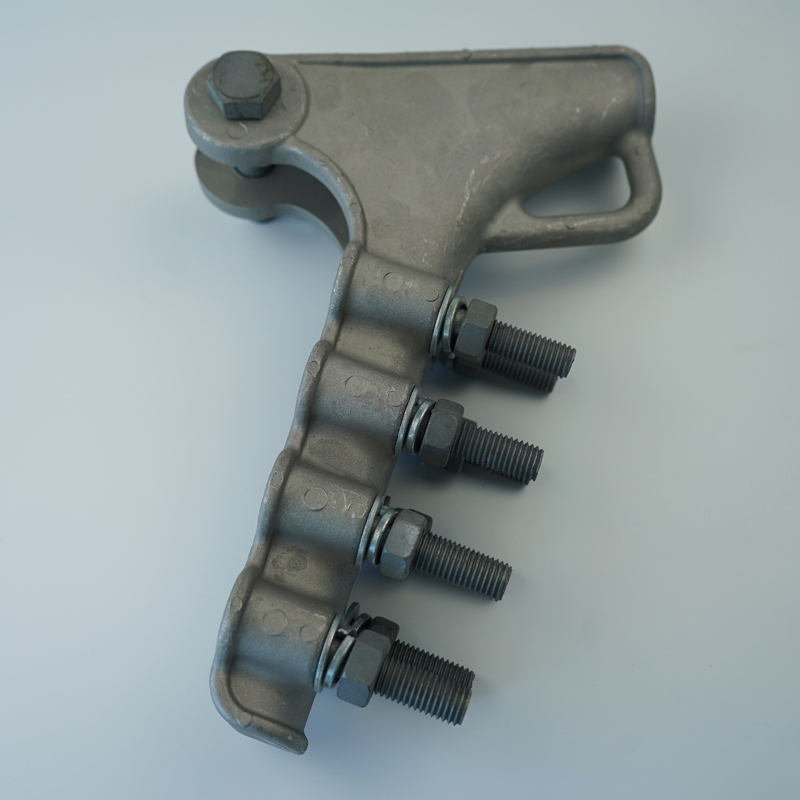

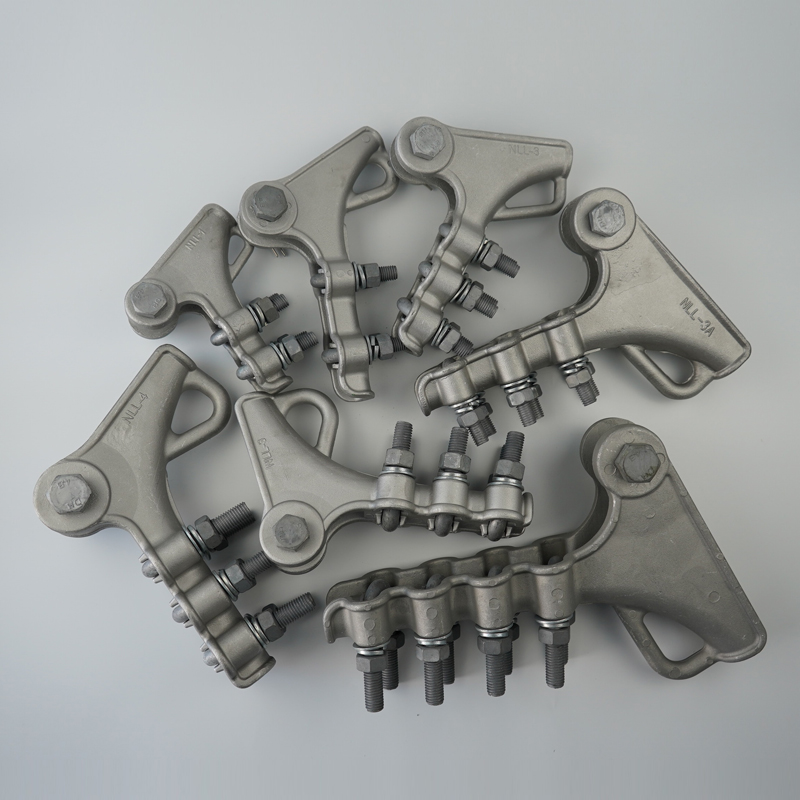

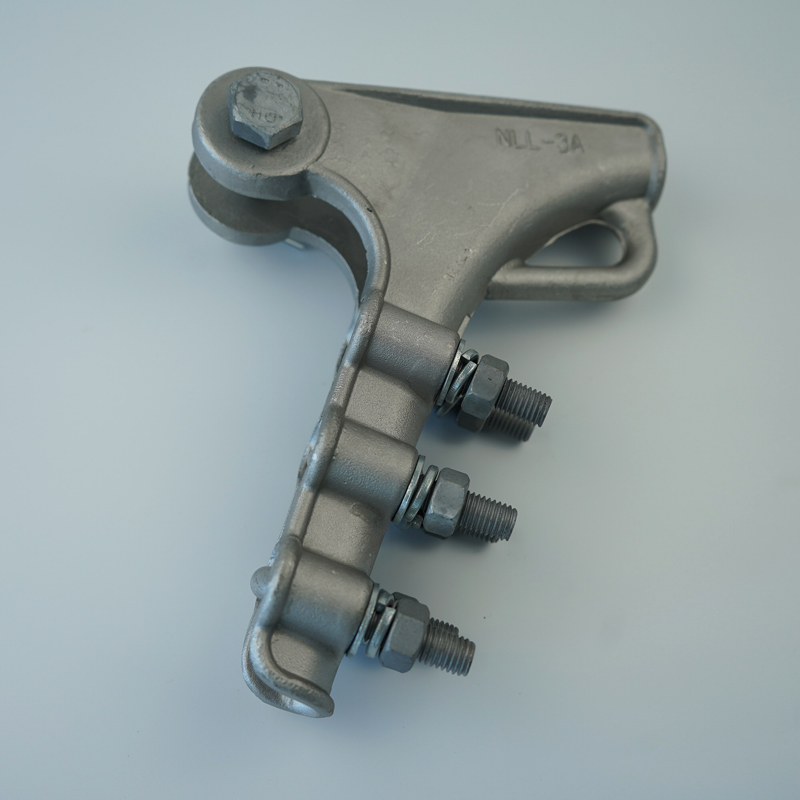

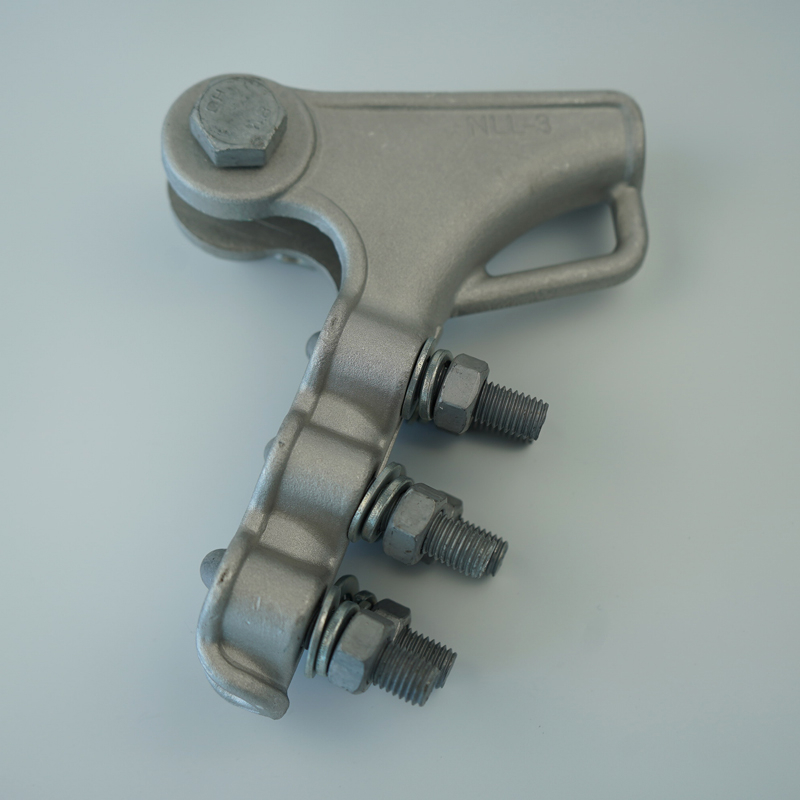

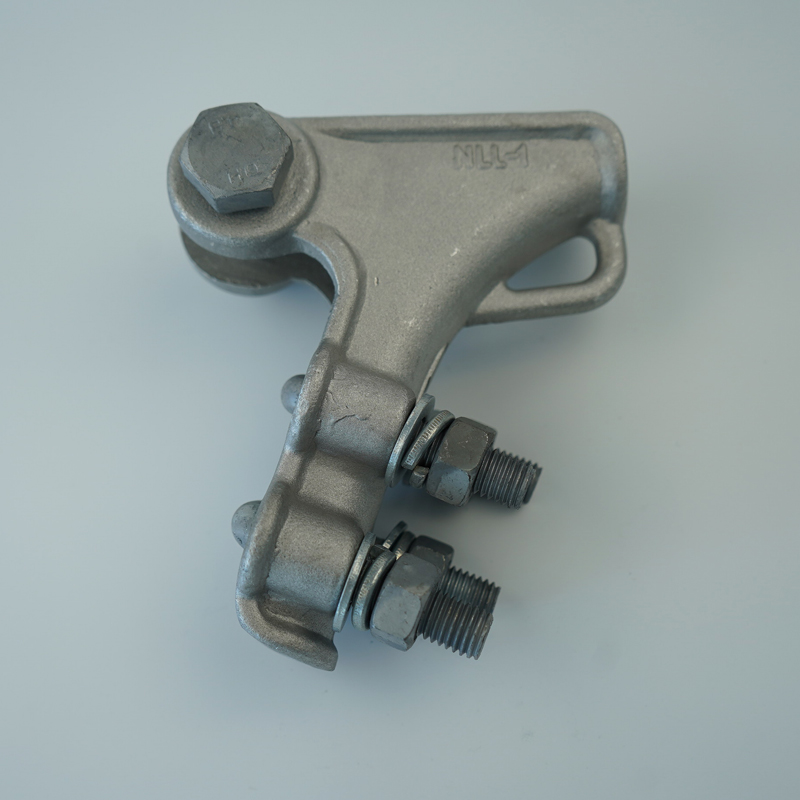

Bolt-type Strain Clamp

Application:
Widely used in 33KV and below overhead lines, it is used to fix aluminum stranded wires or steel core aluminum stranded wires on tension poles, and is used for supporting overhead insulated wires and insulation covers, providing insulation protection.
Availability:
Bolt-type Strain Clamp
Bolt-type Strain Clamp
Bolt-type Strain Clamp
Bolt-type Strain Clamp
Bolt-type Strain Clamp
Bolt-type Strain Clamp

Product Description

Feature:

The product is made of high-strength aluminum alloy low-pressure casting, with a smooth surface, long service life, and no hysteresis loss. It is an energy-saving product and is easy to install and use. Hot dip galvanized bolts are required for fastening bolts.


Standard:

The product meets the requirements of IEC61284 standard.


Type

Suitable for Cable Size

No. of Bolts

Failure Load

NLL-1

16-70mm2

2pcs-M12

45KN

NLL-2

35-95mm2

2pcs-M12

60KN

NLL-3

35-120 mm2

3pcs-M12

70KN

NLL-3A

50-150 mm2

3pcs-M12

75KN

NLL-3NW

35-150 mm2

3pcs-M14

80KN

NLL-4NW

95-300 mm2

3pcs-M14

90KN

NLL-4

120-300 mm2

4pcs-M14

90KN
