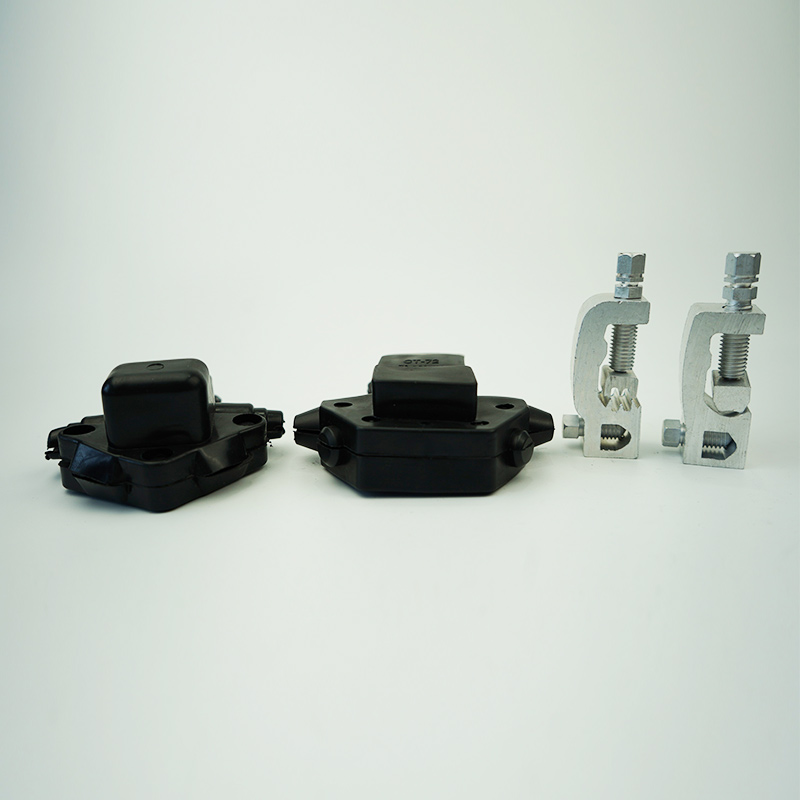

CT-series AL IPC

Application:
Suitable for supporting and connecting low-voltage overhead bundled cable systems of 1KV and below. Main line: insulated aluminum cable, branch line: insulated aluminum cable.
Availability:
CT-series AL IPC
CT-series AL IPC
CT-series AL IPC

Product Description

Feature:

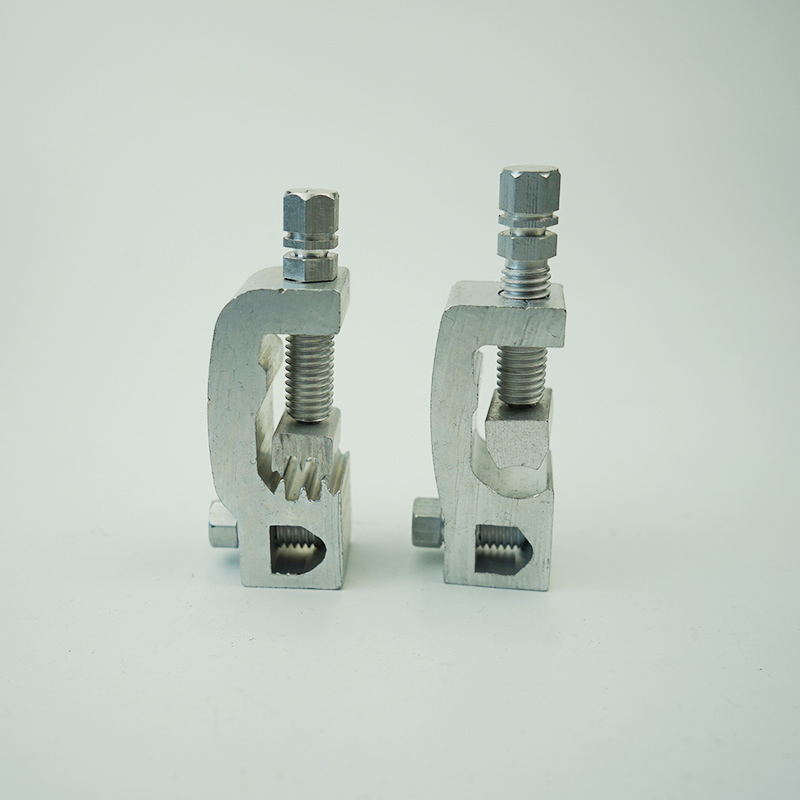

The connector body, puncture teeth, and torque bolts are made of aluminum alloy material with high mechanical strength and corrosion resistance.

The constant puncture force of the torque bolt can ensure that the cable connection achieves the best electrical effect and meets the specified tensile strength requirements for cable damage.

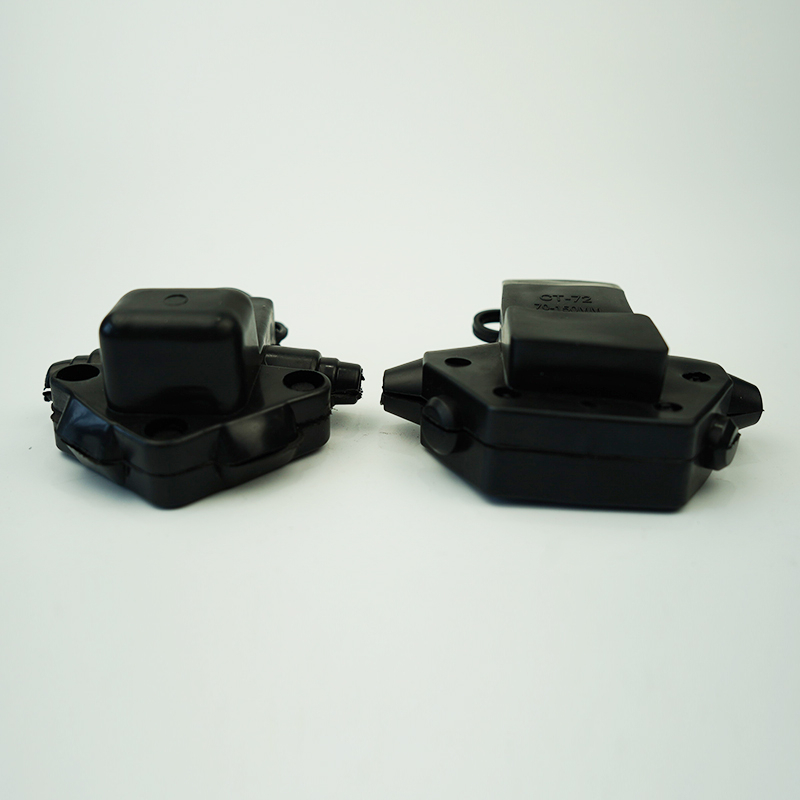

The connector is equipped with an insulation cover for waterproof function.


Standard:

The electrical aging of the product and the mechanical damage test of the cable comply with the requirements of EN 50483-4:2009 NFC33-020 standard


Type

Suitable for Main Line (mm2)

Suitable for Branch Line (mm2)

No. of Bolts

CT21

10-25

2.5-35

1pcs

CT70

35-95

35-50

1pcs

CT72

70-150

6-50

2pcs
