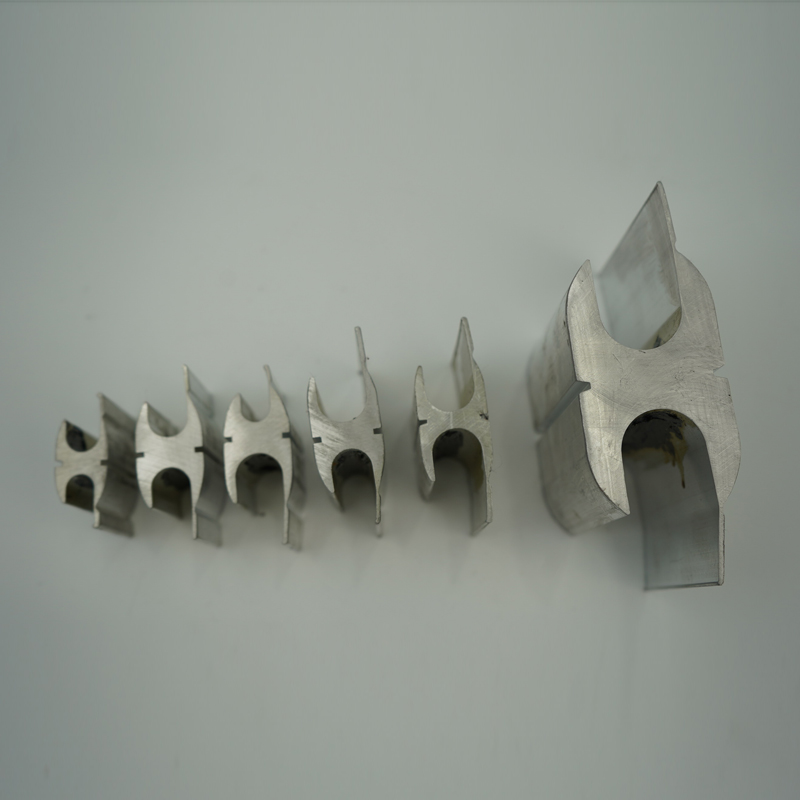

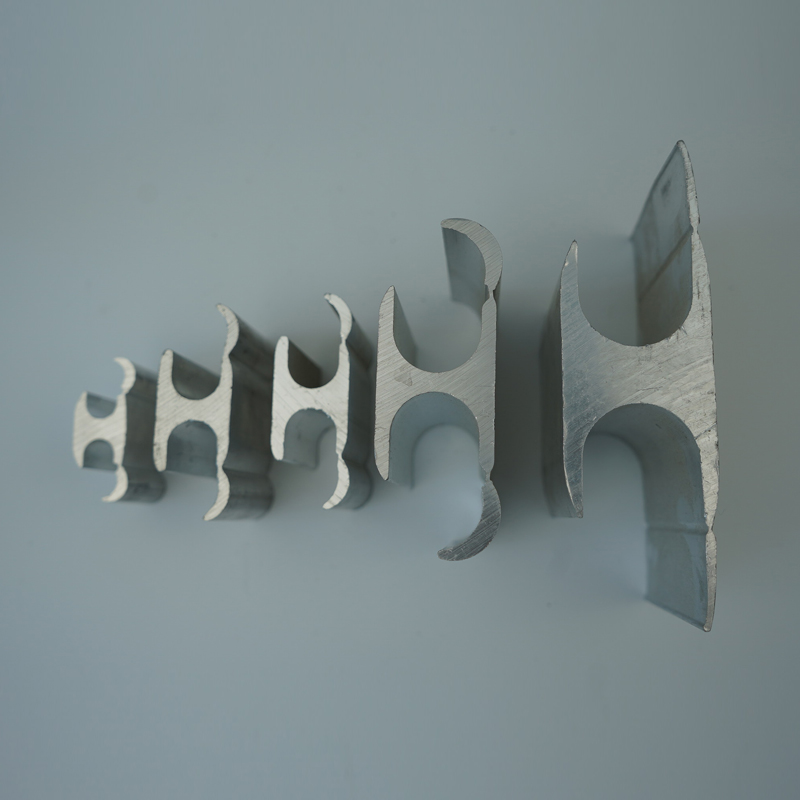

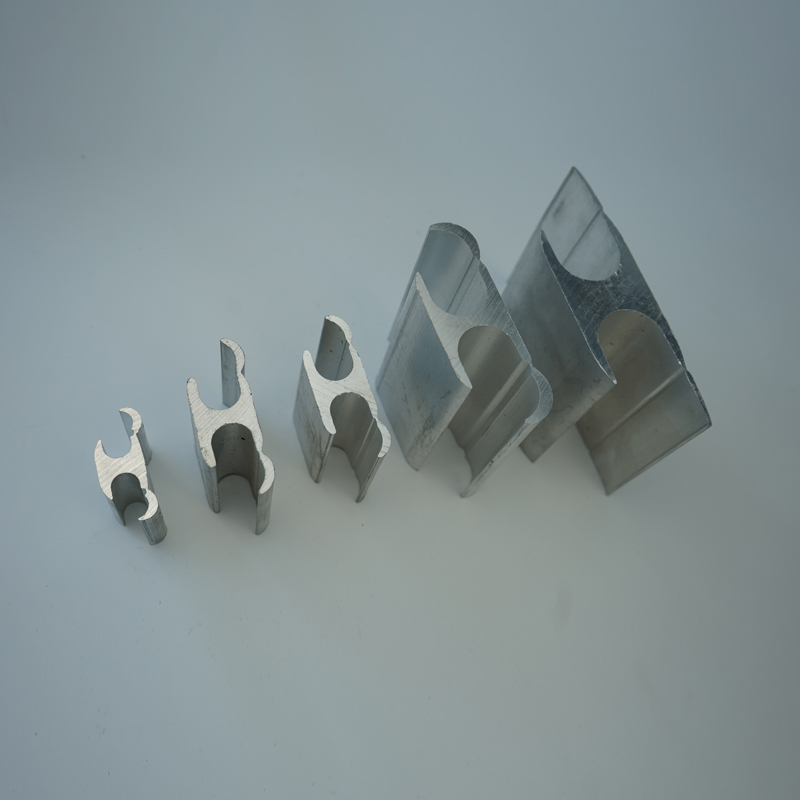

H-type Crimping Clamp

Application:
Widely used for connection and branching between overhead aluminum conductors.

Availability:
H-type Crimping Clamp
H-type Crimping Clamp
H-type Crimping Clamp
H-type Crimping Clamp

Product Description

Feature:

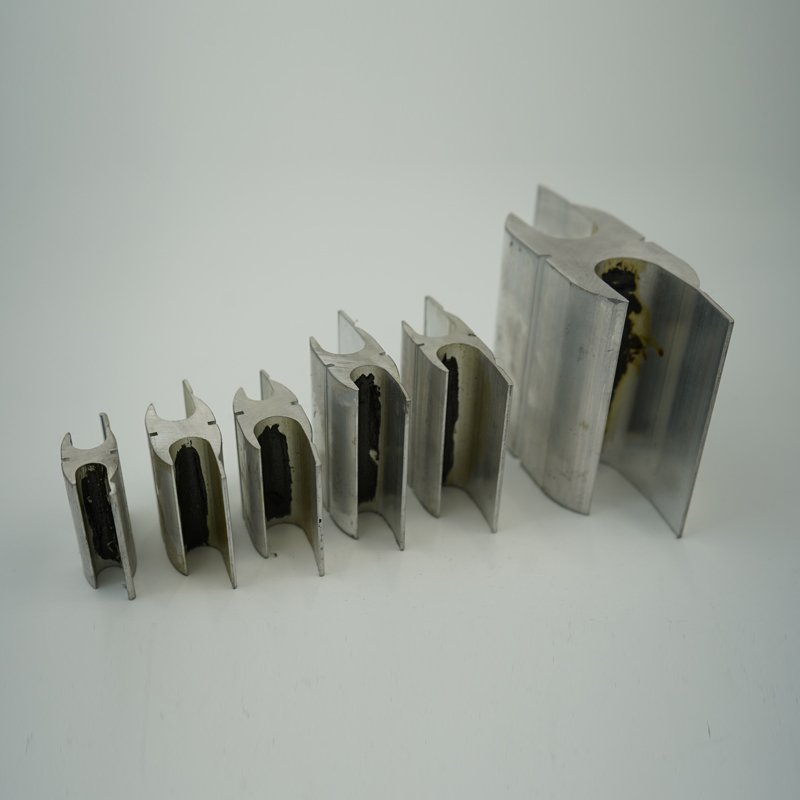

The product is made of high conductivity aluminum alloy profiles, and the crimped loose leaf design helps to enhance the product's grip and electrical performance on the wires. This product can be used in conjunction with an insulation cover to provide waterproofing and insulation. The product slot is coated with conductive paste to further enhance the conductivity of the product.


Standard:

The product meets the requirements of IEC61238-1 standard.


Type

A-Cable Size (mm)

B-Cable Size (mm)

LH-11

4.8-10.0

4.8-10.0

LH-21

8.3-14.5

4.8-10.0

LH-22

10.0-14.5

10.0-14.5

LH-31

13.0-22.5

4.8-11.5

LH-32

13.0-22.5

11.5-16.0

LH-41

16.2-22.5

16.2-22.5
