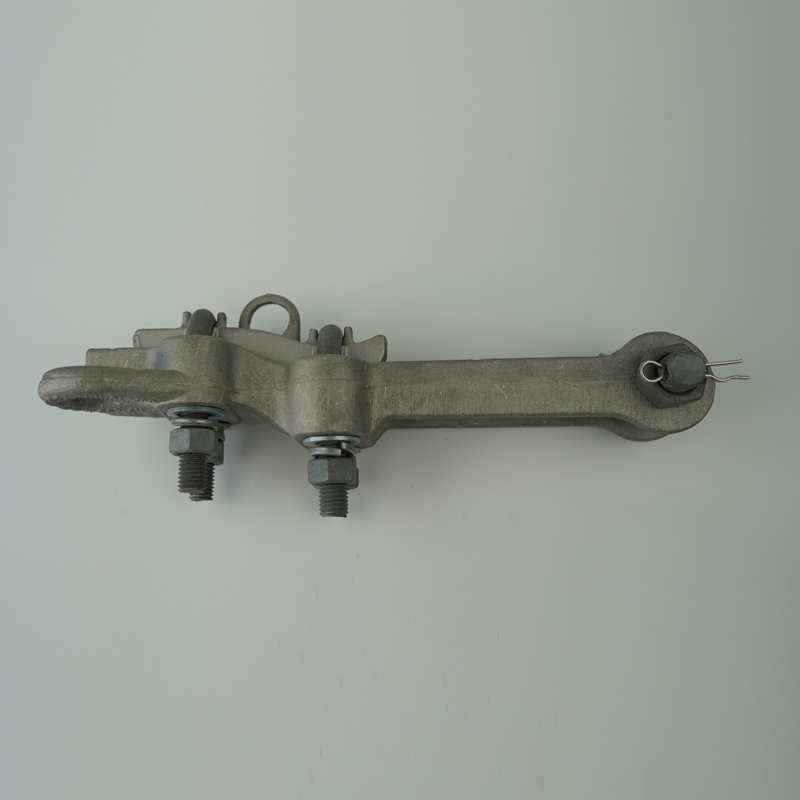

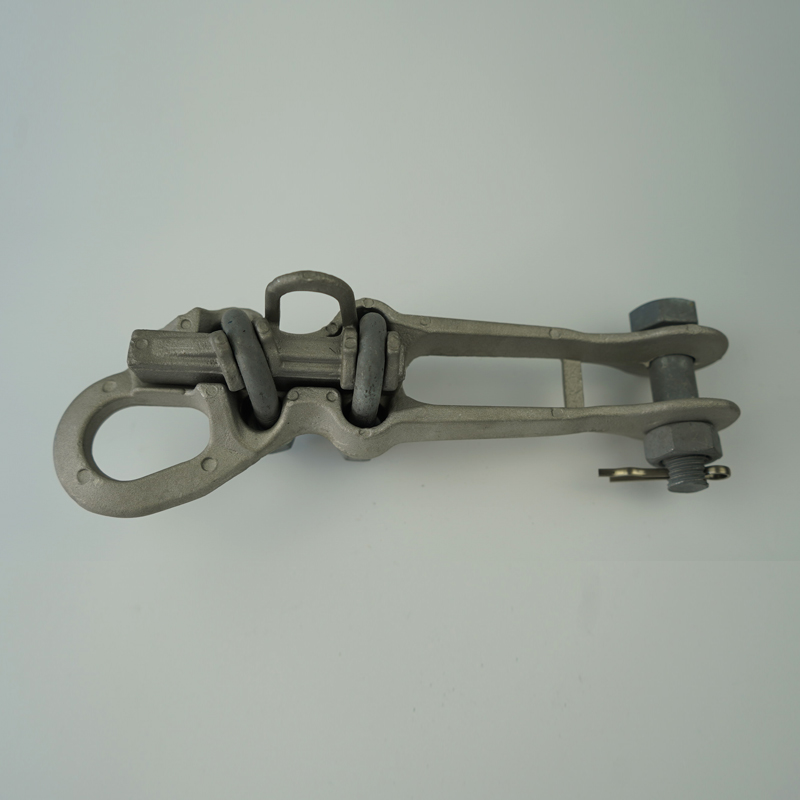

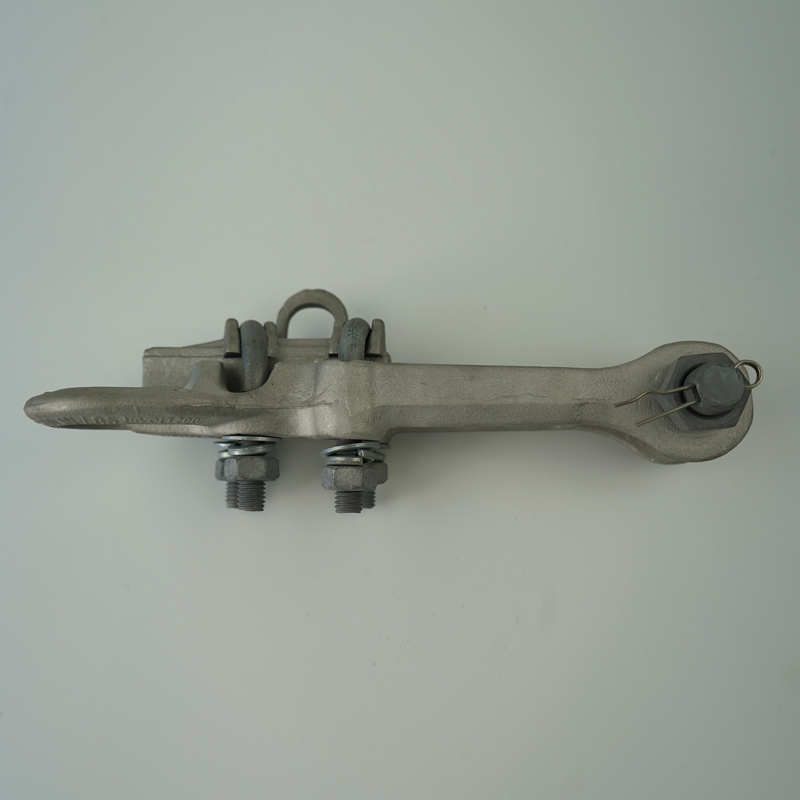

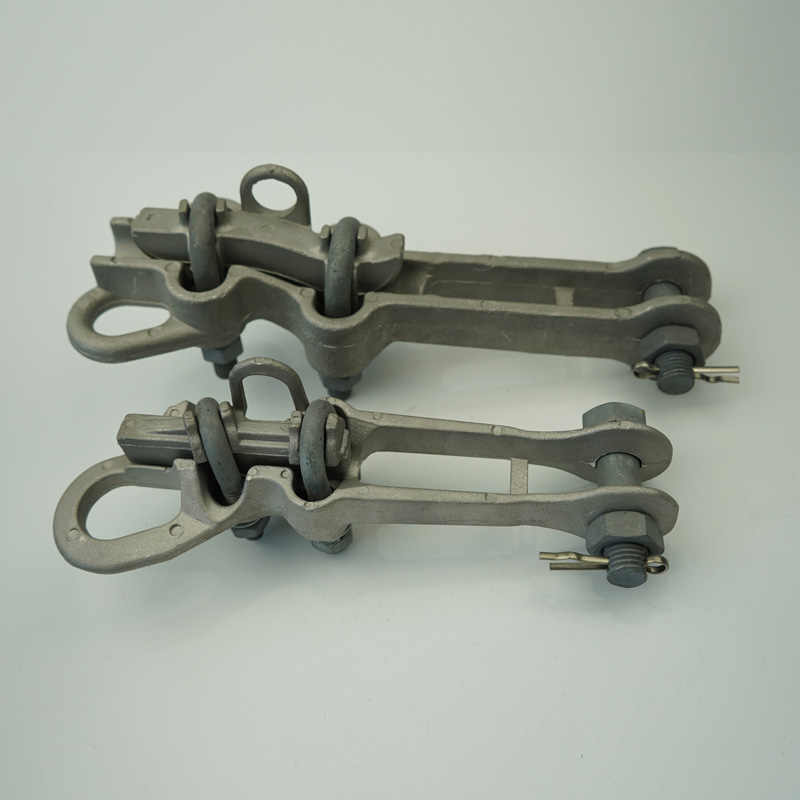

Straight-line Tension Clamp

Application:
Widely used in 33KV and below overhead lines, fixing aluminum stranded wire or steel core aluminum stranded wire on tension poles.
Availability:
Straight-line Tension Clamp
Straight-line Tension Clamp
Straight-line Tension Clamp
Straight-line Tension Clamp

Product Description

Feature:

The product adopts high-strength aluminum alloy low-pressure casting, with a linear design, basically without wire damage, a smooth and clean appearance, long service life, and no hysteresis loss. It belongs to energy-saving products, and is easy to install and use. Hot dip galvanized bolts are required for fastening bolts.


Standard:

The product meets the requirements of IEC61284 standard.


Type

Suitable for Cable Size(AWG)

No. of Bolts

NLZ-1

6-3/0

2pcs-M10

NLZ-2

2/0-4/0-266

2pcs-M12
