Suspension Clamp

Application：
Suitable for hanging four cores bundled self bearing overhead insulated cables of 1KV and below on poles or walls.
Availability:
Inquire Add to Basket

Suspension Clamp
Suspension Clamp

Product Description

Feature：

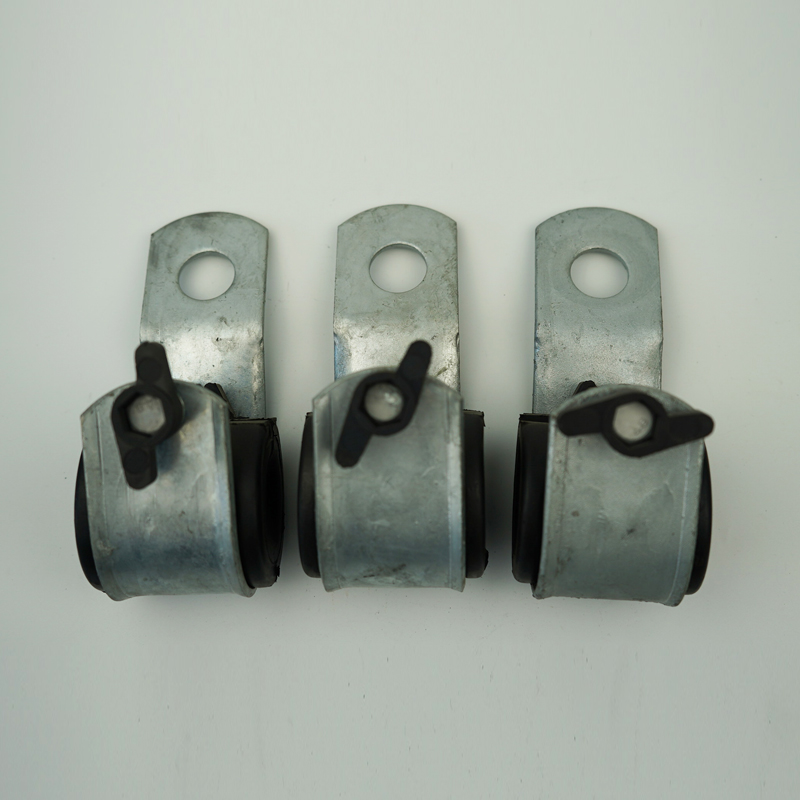

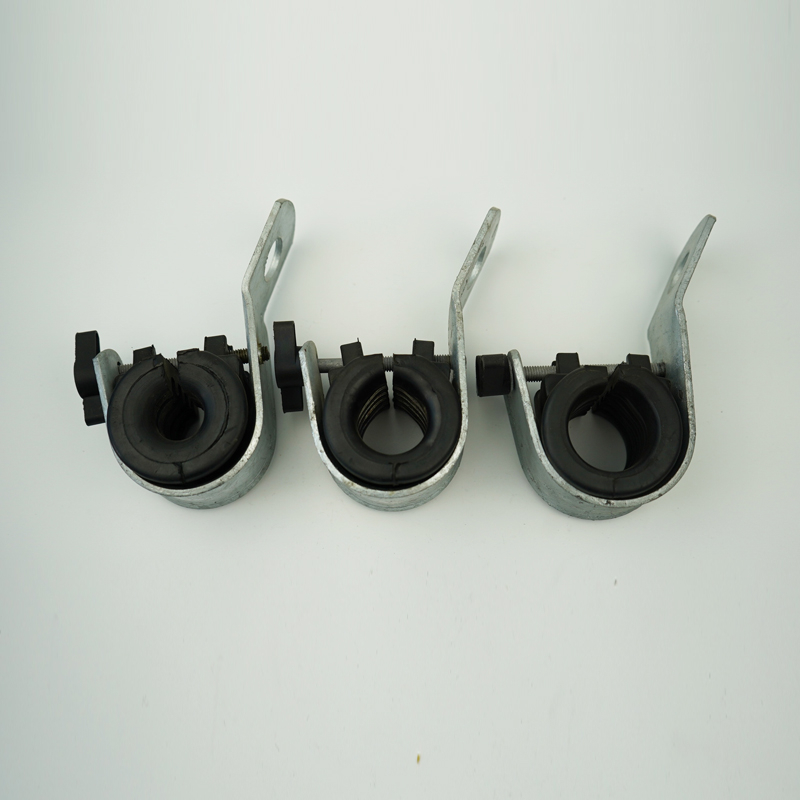

It mainly consists of a hot-dip galvanized steel body with a deflection angle of 60 ° and a weather resistant rubber lining. The installation bolt can be equipped with a shear head torque cap with standard torque, ensuring moderate tightening without damaging the cable insulation layer and easy installation.


Type

Suitable for Cable Size

Failure Load(KN)

XGJ-25-35

4X25-35mm2

8KN

XGJ-50-70

4X50-70mm2

10KN

XGJ-50-70

4X70-95mm2

10KN
