Wedge Clamp

Application:
Wedge parallel groove clamp is suitable for non load-bearing connection or branching of overhead wires in overhead distribution lines. When used for insulated wires, a matching insulation shell is used to provide insulation protection.
Availability:
Wedge Clamp
Wedge Clamp

Product Description

Feature:

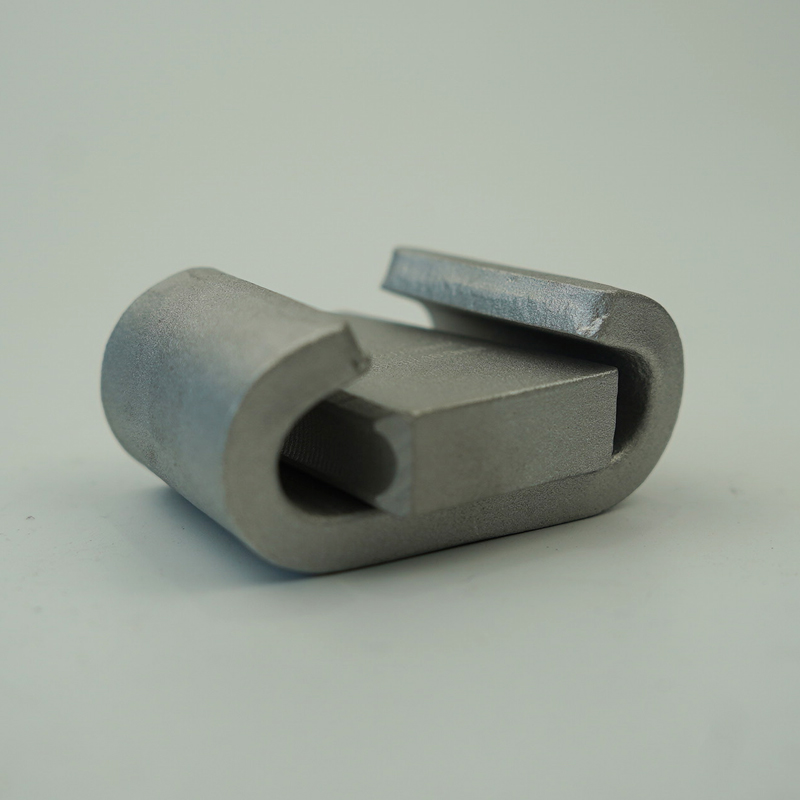

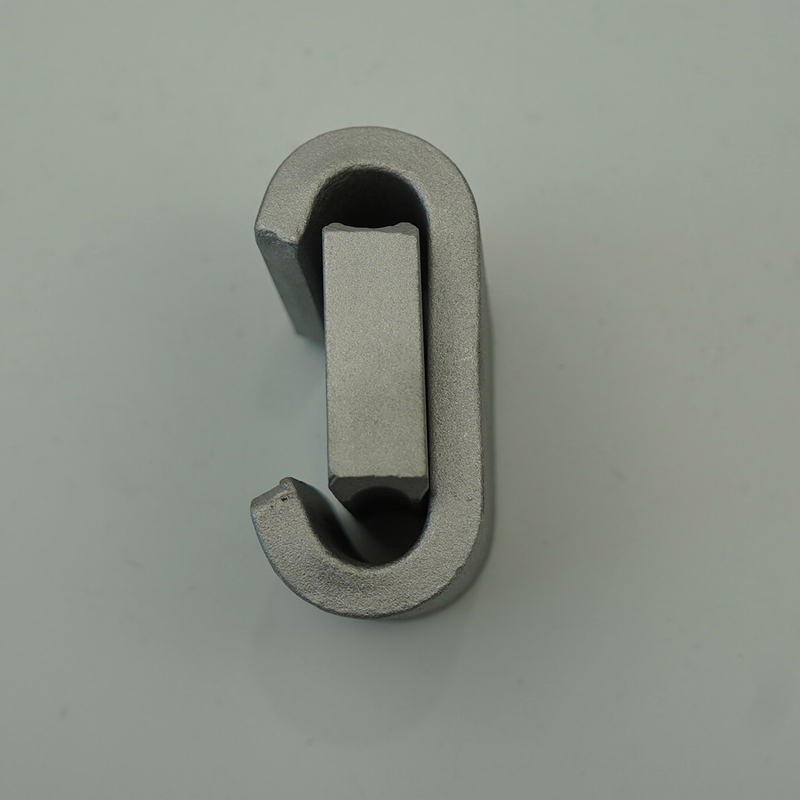

The product is made of high-strength aluminum alloy profiles, consisting of two parts: a C-shaped wedge shell and a wedge block. The groove size between the C-shaped wedge shell and the wedge block corresponds to the diameter of the wire to be installed. The product adopts wedge elastic clamping, which is reliable and suitable for various wire combinations with strong applicability. This product can be used in conjunction with an insulation cover to provide waterproofing and insulation.


Standard:

The product meets the requirements of IEC61238-1 standard.


Type

Suitable for Main Line

Suitable for Branch Line

JXL-1

35-50 mm2

35-50 mm2

JXL-2

70-95 mm2

70-95 mm2

JXL-3

120-150 mm2

120-150 mm2

JXL-4

185-240 mm2

185-240 mm2
