Product Description
Feature:

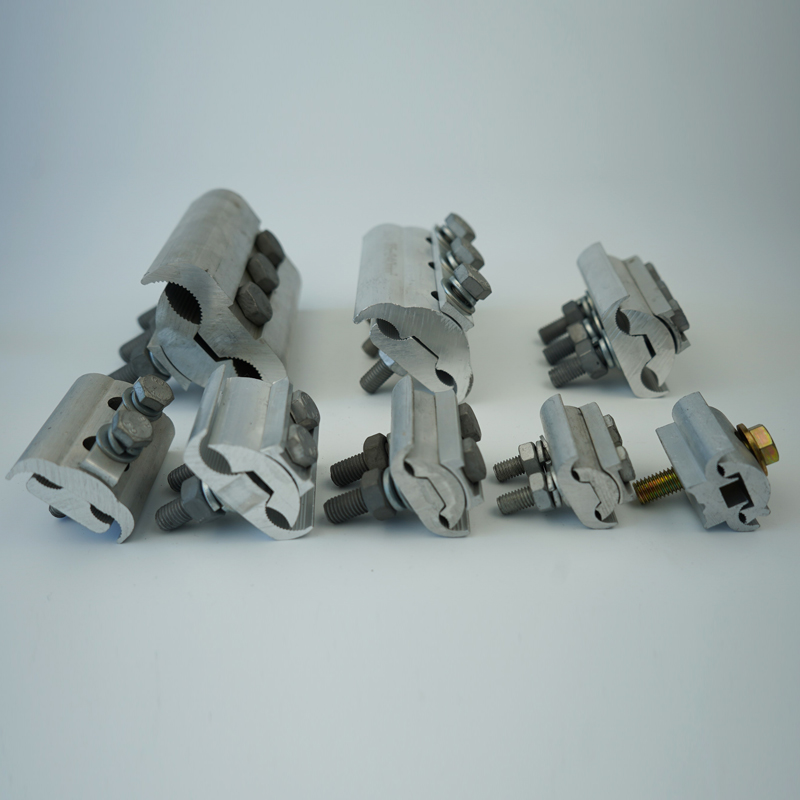

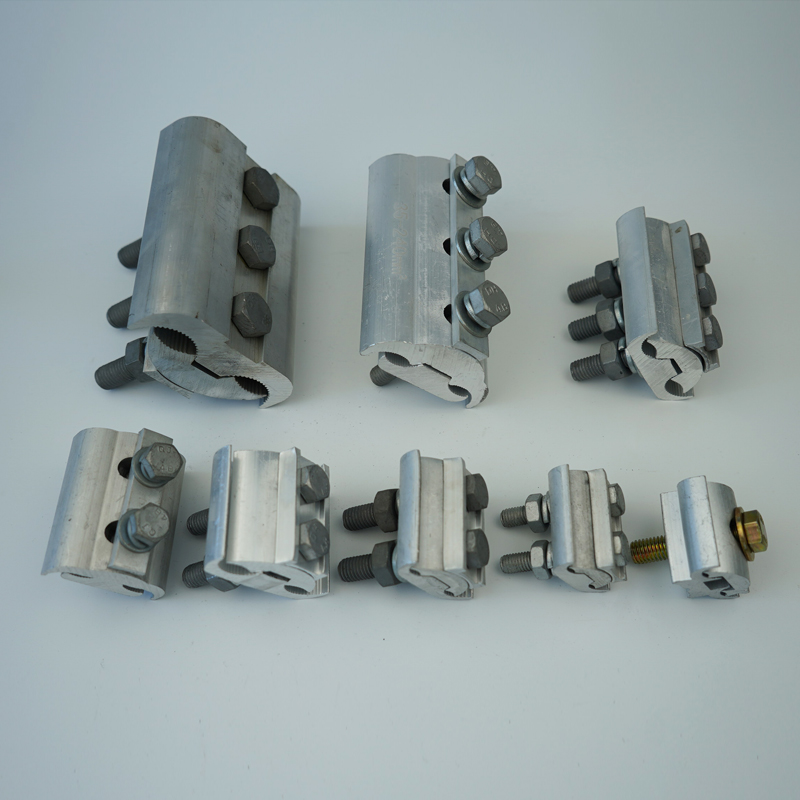

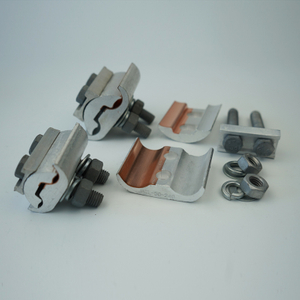

The product is made of high-strength aluminum alloy profiles, and the specially designed adjustable cover holes can adapt to different specifications of cables. The design of anti slip teeth in the product slot helps to improve the mechanical grip and electrical performance of the product. This product can be used in conjunction with an insulation cover to provide waterproofing and insulation. The fastening bolts can be hot-dip galvanized, Dacromet, Delken or stainless steel bolts according to customer needs.
Standard:
The product meets the requirements of IEC61238-1 standard.
Type | Suitable for Cable Size | No. of Bolts |
JBL-10-70 | 1pcs-M10 | |
JBL-10-70 | 10-70 mm2 | 2pcs-M8 |
JBL-16-120 | 16-120 mm2 | 2pcs-M10 |
JBL-50-240 | 50-240 mm2 | 2pcs-M10 |
JBL-50-240 | 50-240 mm2 | 3pcs-M10 |
JBL-35-240 | 35-240 mm2 | 3pcs-M10 |
JBL-120-400 | 120-400 mm2 | 3pcs-M12 |
