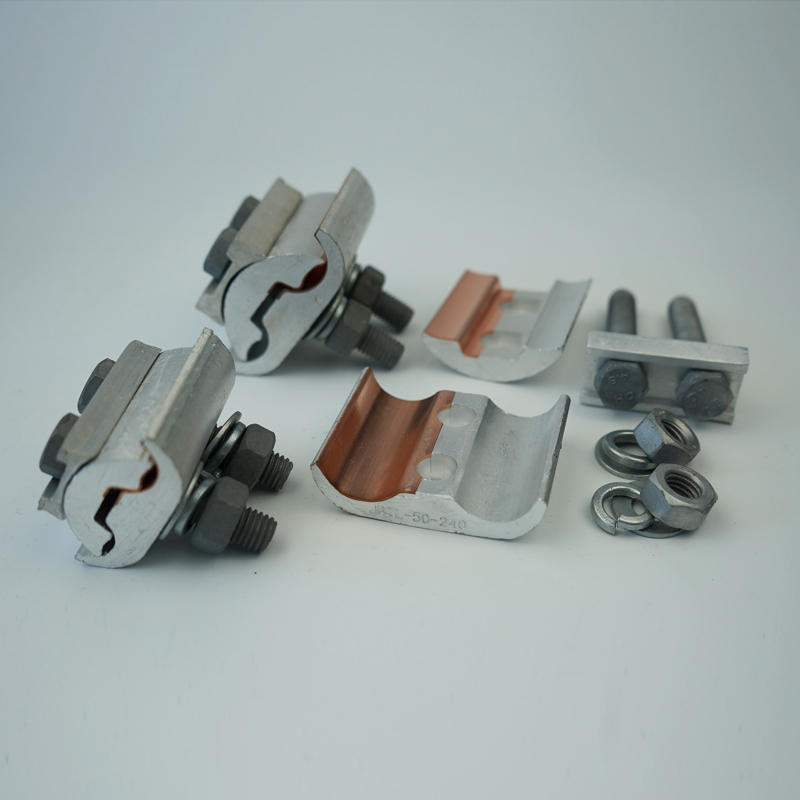

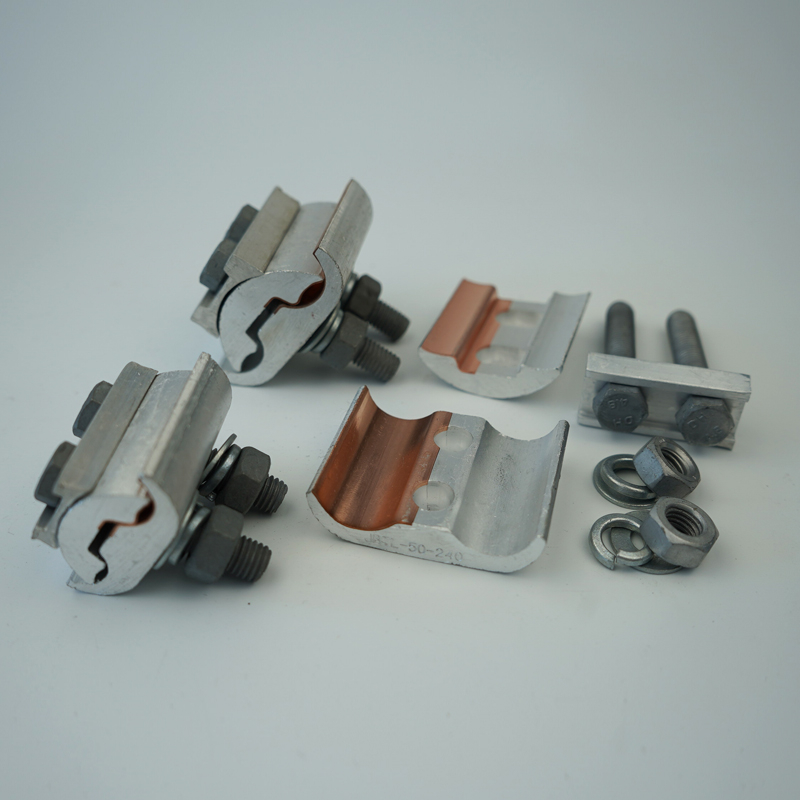

AL-CU PG Clamp

Application:
Widely used for copper aluminum transition connection and branching between overhead aluminum conductors and copper conductors.
Availability:
AL-CU PG Clamp
AL-CU PG Clamp

Product Description

Feature:

The product body is made of high-strength aluminum alloy profiles, and the high-strength embedding method is used inside the profiles to tightly embed the copper sheets into the aluminum material, replacing traditional brazing processes. The specially designed adjustable cover holes can adapt to different specifications of cables. The copper aluminum integrated structure helps to improve the electrical performance of the product. This product can be used in conjunction with an insulation cover to provide waterproofing and insulation. The fastening bolts can be hot-dip galvanized, Dacromet, Delken or stainless steel bolts according to customer needs.


Standard:

The product meets the requirements of IEC61238-1 standard.


Type

Suitable for Cable Size

No. of Bolts

JBL-16-120

16-120mm2

2pcs-M10

JBL-50-240

50-240mm2

2pcs-M10
