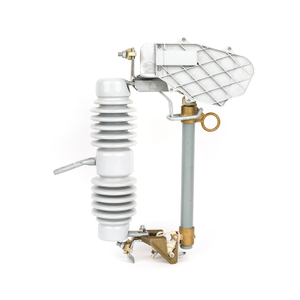

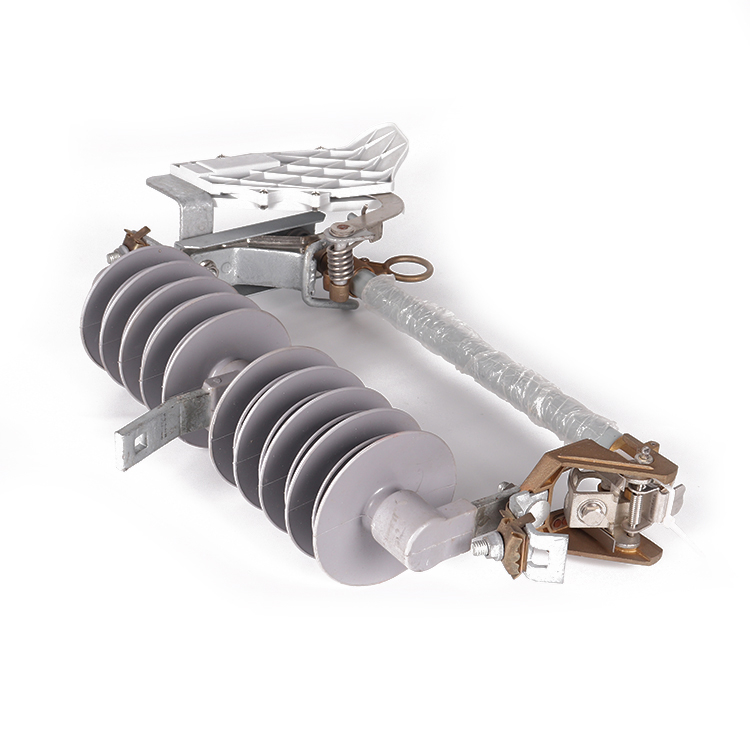

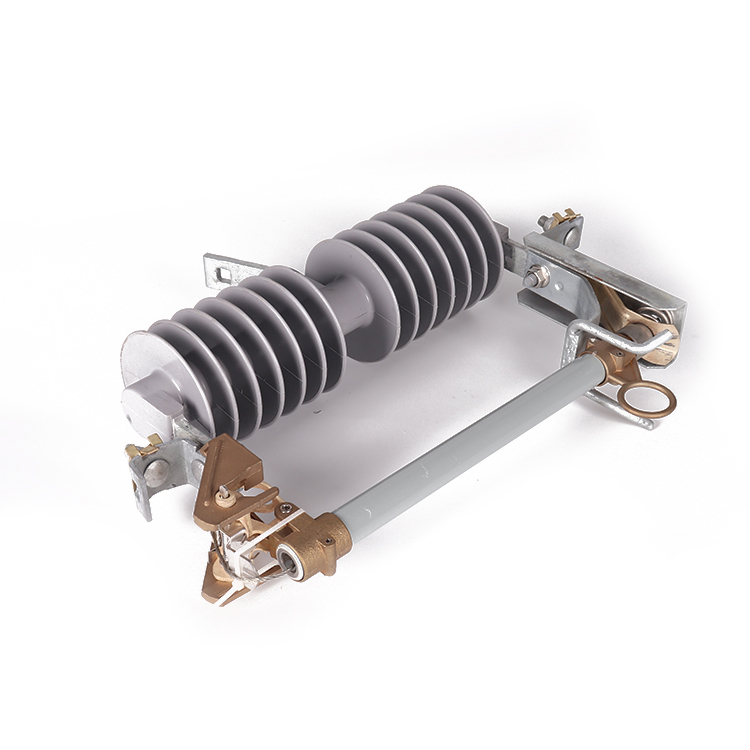

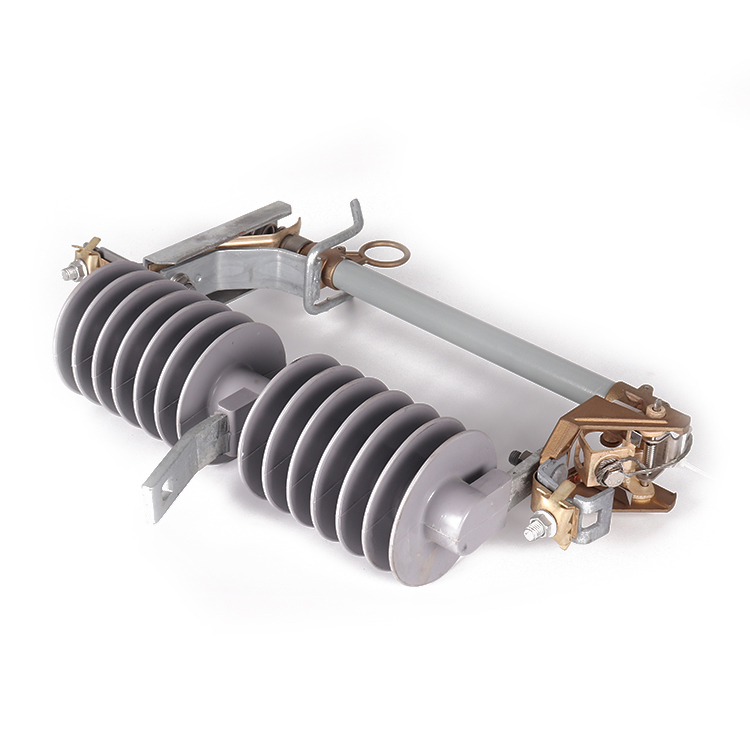

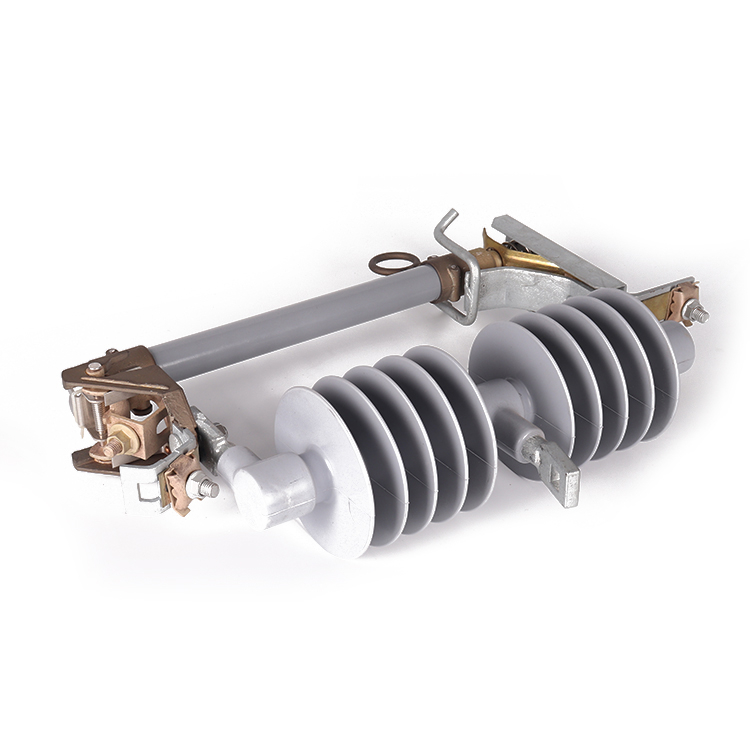

Pole Mounted Drop Out Fuse

Application:
The primary purpose of any Drop-out Fuse is to provide protection to the lines of your system and the various apparatus on those lines such as transformers and capacitor banks. Cutout fuse provide reliable protection from low-level overloads that just melt the fuse link, intermediate faults, and very high faults, through maximum interrupting capacity.
Availability:
Pole Mounted Drop Out Fuse
Pole Mounted Drop Out Fuse
Pole Mounted Drop Out Fuse
Pole Mounted Drop Out Fuse

Product Description

Technical Data of Polymer Type:

Type

Rated Voltage

Rated Current

Breaking Current

Impulse Voltage

Power-frequency withstand voltage

Creepage Distance

Weight

Dimension

KV

A

KA

BIL

KV

MM

KG

MM

ZN-E01

11-15

100

10

110

45

480

6

440x400x145

ZN-E02

11-15

200

12.5

110

45

480

6.5

ZN-E03

24-27

100

10

150

70

660

7

520x400x140

ZN-E04

24-27

200

12.5

150

70

660

7.5

ZN-E05

33-36

100

10

195

85

1080

9

620x360x135

ZN-E06

33-36

200

12.5

195

85

1080

9.5

ZN-E07

33-36(F)

100

10

195

85

1080

9

670x380x135

ZN-E08

33-36(F)

200

12.5

195

85

1080

9.5

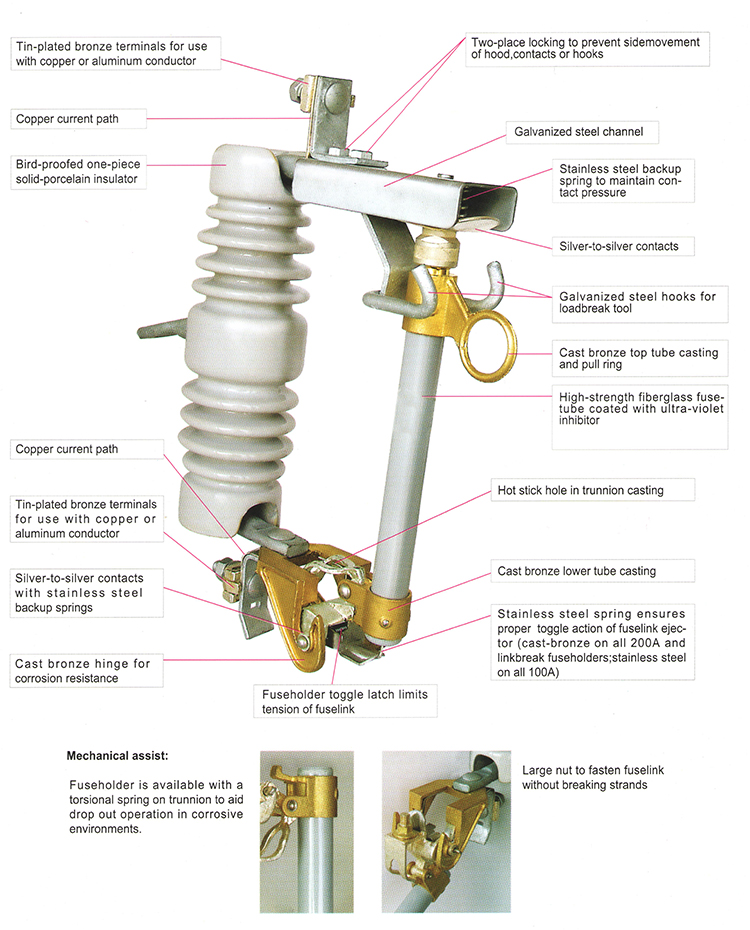

AA
