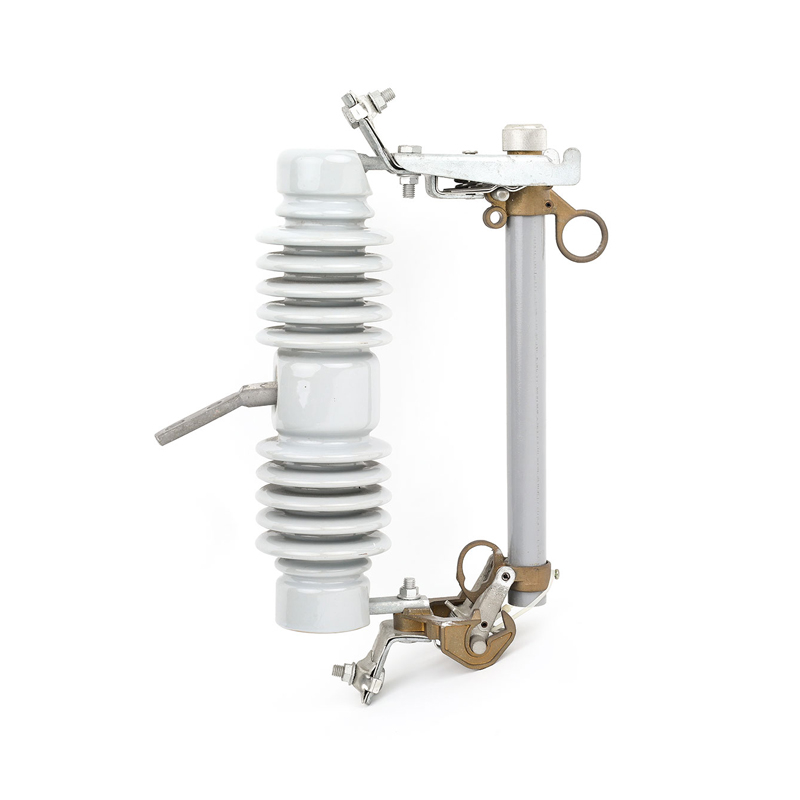

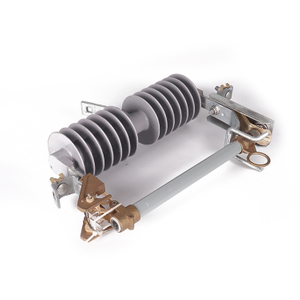

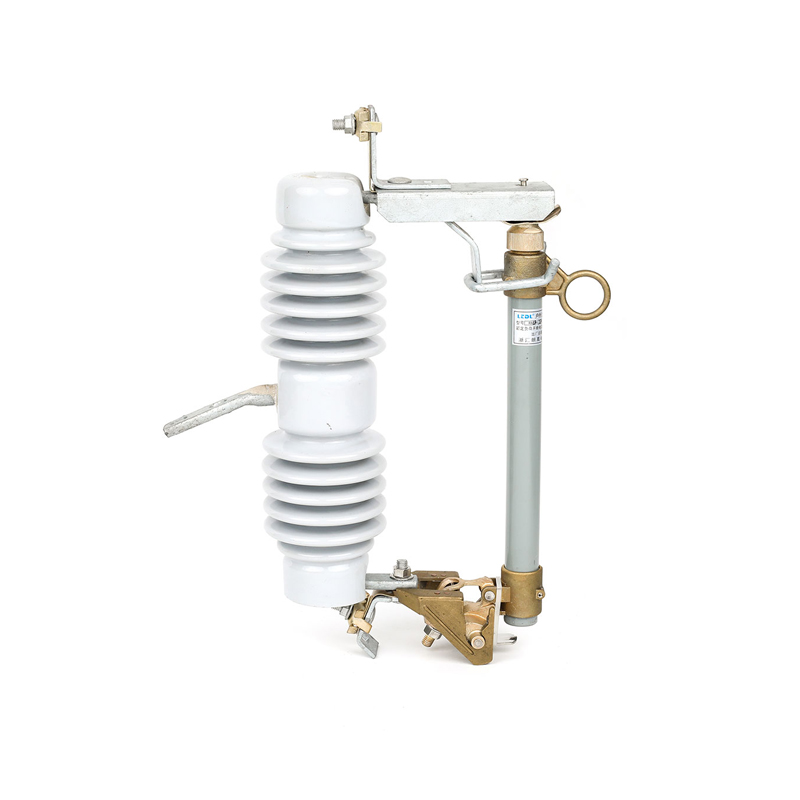

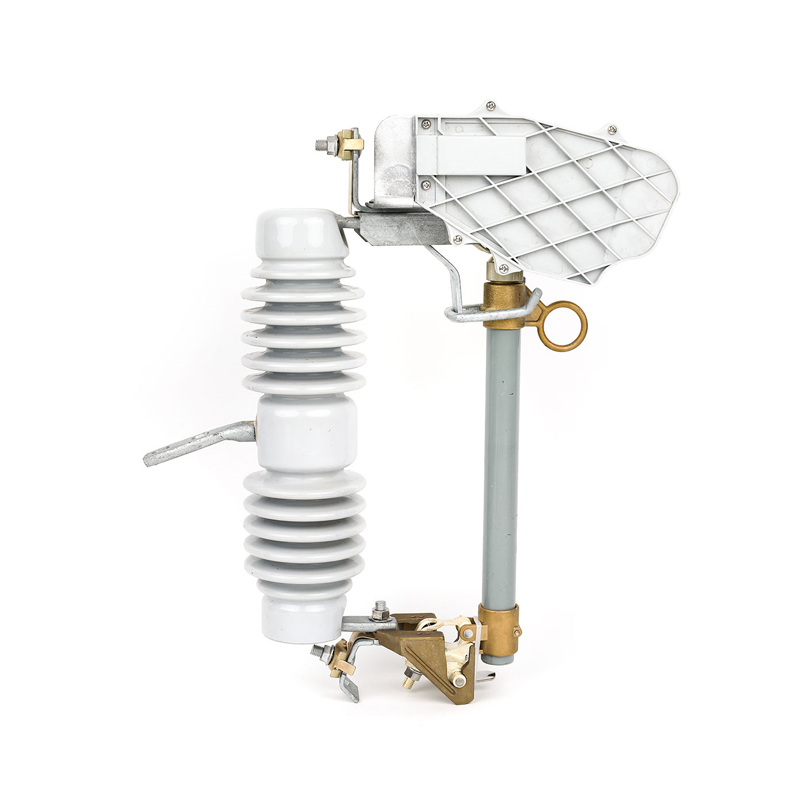

Pole Mounted Drop Out Fuse

Application:
The primary purpose of any Drop-out Fuse is to provide protection to the lines of your system and the various apparatus on those lines such as transformers and capacitor banks. Cutout fuse provide reliable protection from low-level overloads that just melt the fuse link, intermediate faults, and very high faults, through maximum interrupting capacity.
Availability:
Pole Mounted Drop Out Fuse
Pole Mounted Drop Out Fuse
Pole Mounted Drop Out Fuse

Product Description

Technical Data of Porcelain Type:

Type

Rated Voltage

Rated Current

Breaking Current

Impulse Voltage

Power-frequency withstand voltage

Creepage Distance

Weight

Dimension

KV

A

KA

BIL

KV

MM

KG

MM

ZN-D01

11-15

100

10

110

40

240

7

420x370x135

ZN-D02

11-15

200

12

110

40

240

7.5

ZN-D03

11-15

100

10

110

40

372

8.5

520x370x135

ZN-D04

11-15

200

12

110

40

372

9

ZN-D05

24-27

100

10

125

65

530(480)

11

525x380x170

ZN-D06

24-27

200

12

125

65

530(480)

11.5

ZN-D07

24-27(F)

100

10

125

65

530(480)

11

525x380x170

ZN-D08

24-27(F)

200

12

125

65

530(480)

11.5

ZN-D09

33-36

100

10

170

70

660(720)

15.5

640(680)x450x170

ZN-D10

33-36

200

12.5

170

70

660(720)

16

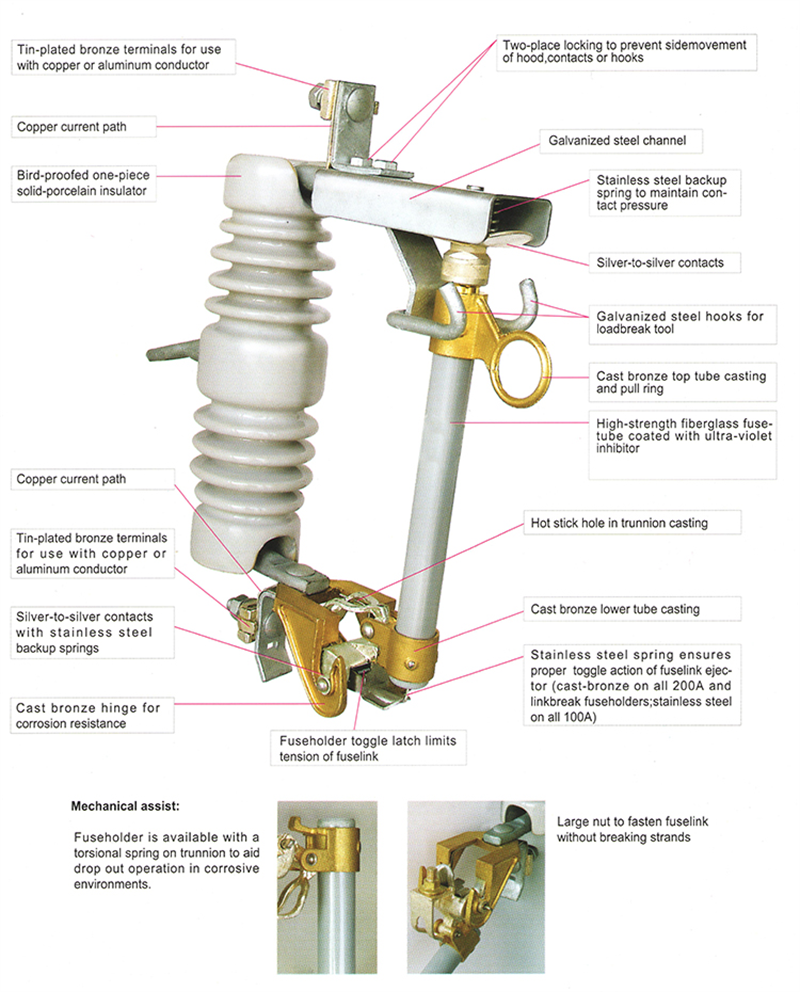

AA
